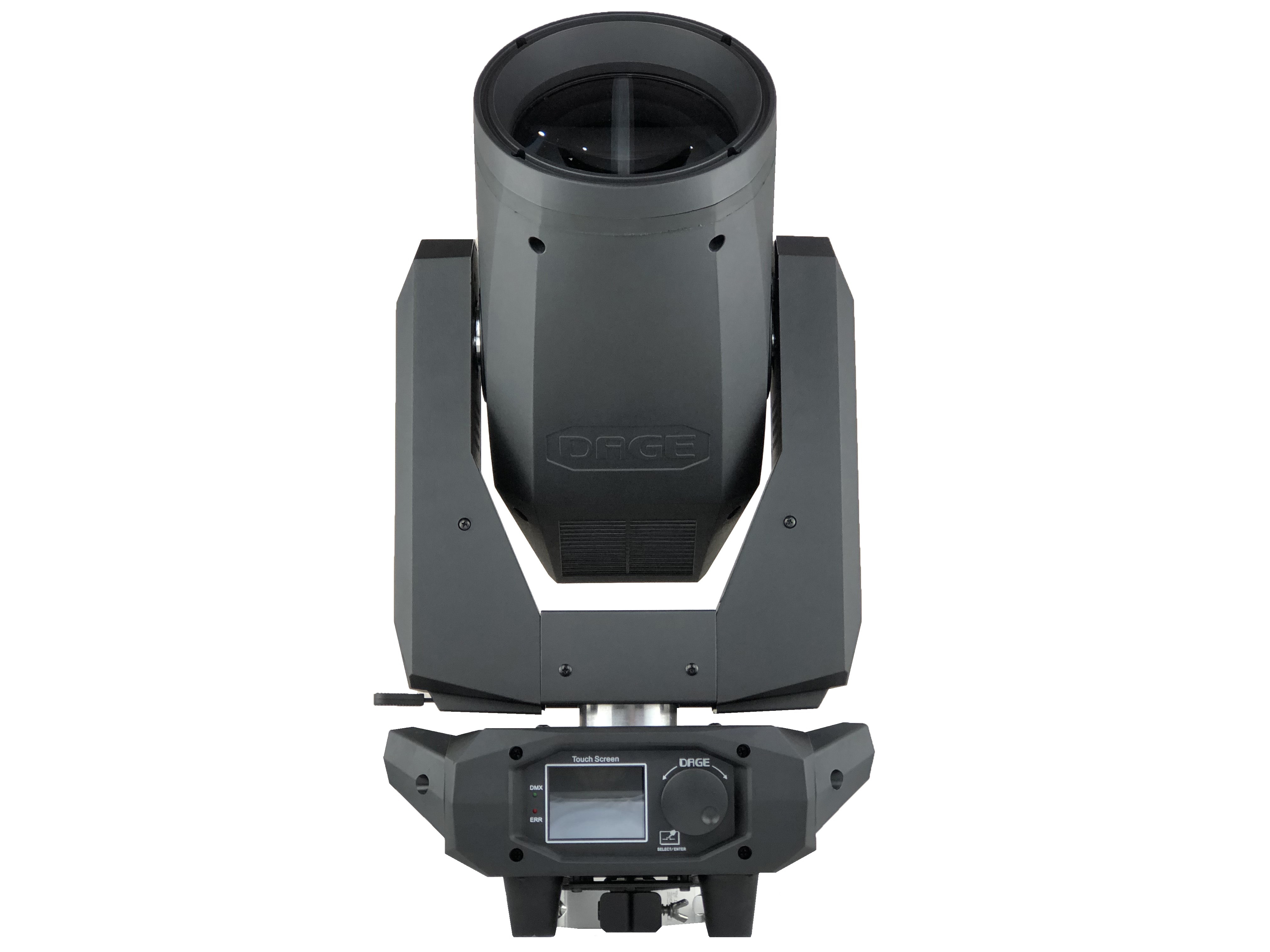

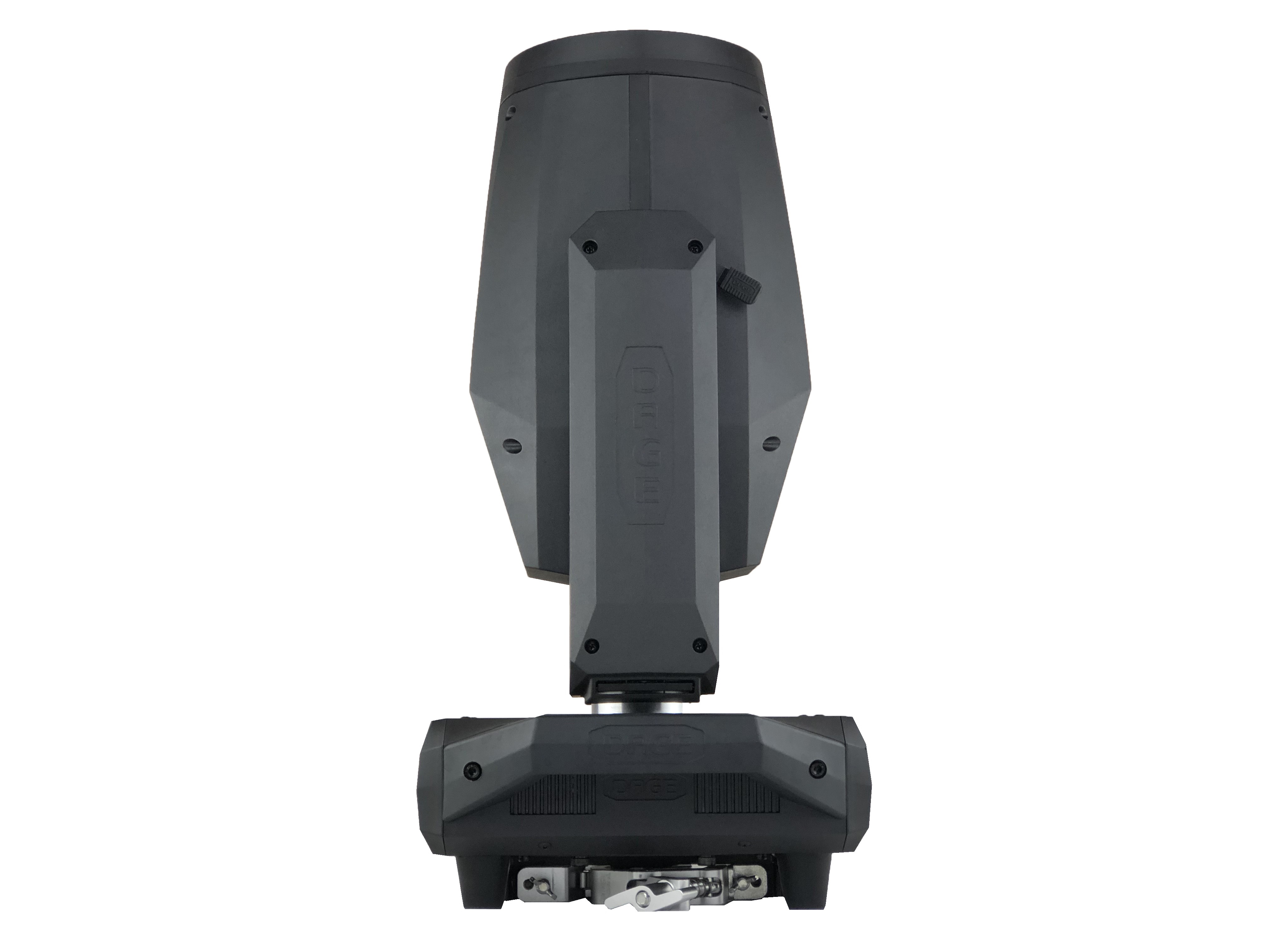

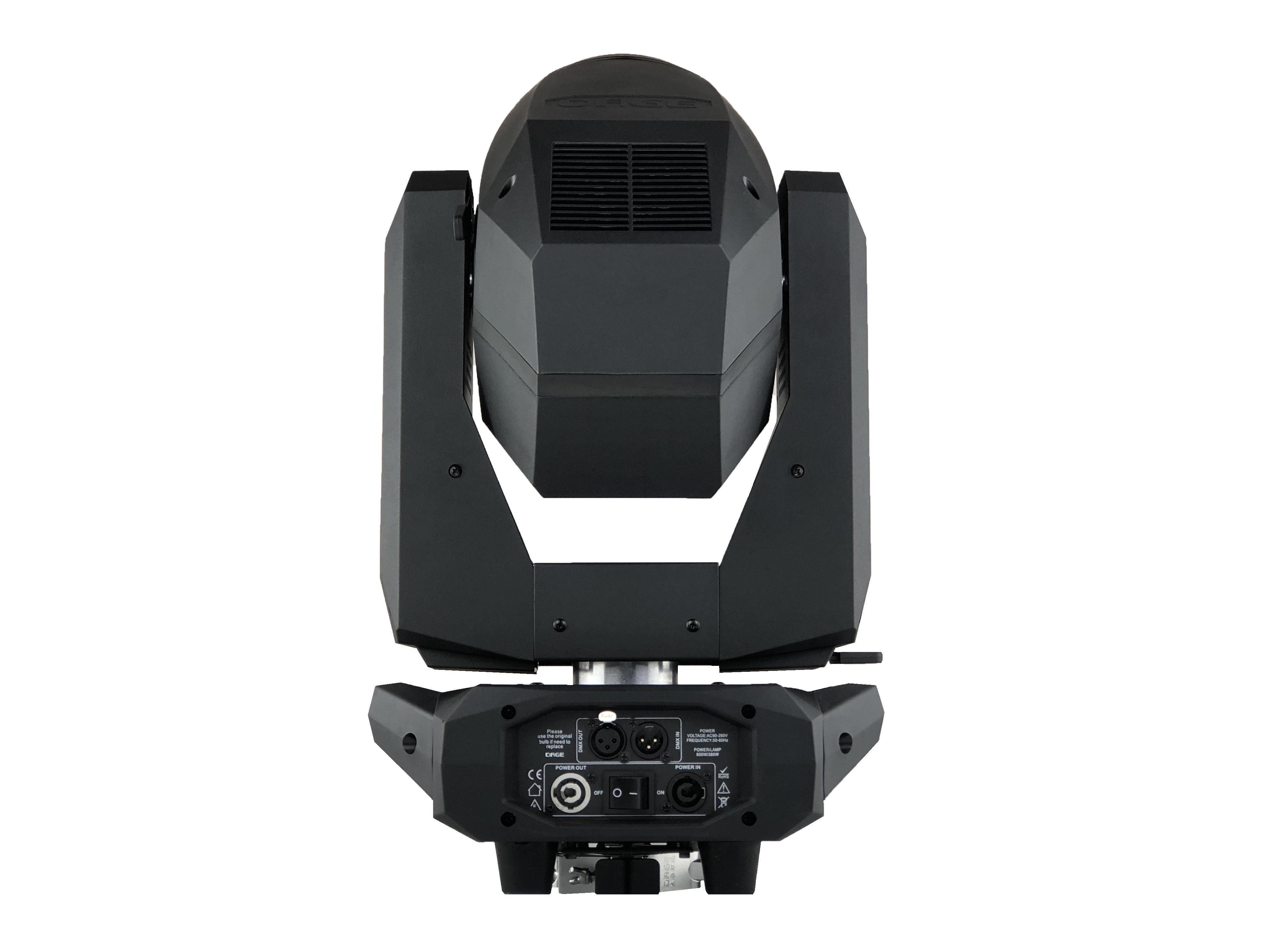

AK-3822 (382W) OPTIMUS PRIME Beam Moving Head Light

★This is DAGE exclusive product: with R & D and design patents, any Infringement and Counterfeits will be prosecuted.★

ADVANTAGES:

1. Unique housing design,small volume, compact structure, high quality & extremely stable.

2. Customized lamp OSRAM SIRIUS HRI 382W, constant current 650W/380V full power supply.

3. Super strong, uniform & clean beam effect, soft, fresh & vivid color.
4. Fantastic & colorful honeycomb prism+ 8 facet prism, with prism auto-focusing function.
5. Sensitive & high speed, 3-phase motor for X/Y movement, positioning accuracy.

6.With RDM system, can set up the DMX address on the controller directly

7. With 2 clamps fixed on the light base, easy for mobile shows.

8.Fixed battery for the LCD display, set up DMX address without electronic is available.

OPTICAL SYSTEM:
Customized OSRAM SIRIUS HRI 382W lamp, around 3,000 hrs life
Italian heat-protecting glass, good dissipation
With special Optical lens structure, the lens’s dia.up to 152mm

2-50° beam and frost angle.

Auto beam and prism focusing function

DISPLAY SYETEM:
Display mode 20 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
LCD touch and knob control mode

CONTROL SYSTEM:
International standard DMX512
22 control channels
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 12V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard

DATA INTERFACE:
3-pin male and female connector
2. 3-pin combines 5-pin male and female connectors

POWER SYSTEM:
650w, power fluctuations (± 50W) works normally
AC90－240V/50-60HZ
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard

POWER INTERFACE:
Three-pin male and female data interface, dual hand in hand power interface

STROBE SYSTEN
Independent double shutter device, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 30% when it turns off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control

COLOR SYSTEM:
Imported Italian specialty high temperature materials, Germany's high-tech coating technology
1 fixed color wheel, 10 colors+open+CTO

6 color Rainbow wheel
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned

GOBO SYSTEM:
1 metal gobol wheel,10 gobos + open, 4 class adjustable beam angle, enabling water,

shake, slow-fast rotation effect
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned

FROST SYSTEM:
Frost setting: Independent single-sided high penetration frost lens
Frost effect: Various changes of frost effects
Frost angle: The largest is 50°

PRISM SYSTEM:
Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology
Prism structure: 8,24 Honeycomb prism, can overlap 32 Honeycomb prism effect at the same time
Rotating angle is adjustable. The largest prism angle is 80°

COOLING SYSTEM:
Excellent aluminum material, good heat dissipation and light weight
Fan Qty: 6pcs
Thermal protection: Built-in overheating protection

ROTATION SYSTEM:
XY motor: Fast and quiet 3-phase motor
XY position: Encoder& Hall components position and advanced scanning memory function
Pan:540° (16/32 bit)
Tilt 270 ° (16/32 bit)

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
